A42Y-16C彈簧全啟封閉式安全閥產品概述：
A42Y-C型適用于工作溫度≤300℃空氣、石油氣、液體等介質的設備和管路上。A42Y-P/R型適用于工作溫度≤200℃有腐蝕性介質的設備和管路上，作為超壓保護裝置。
 |
主要零部件材料
NO.
|
零件名稱
|
A42Y-C/KA42Y-C材料
|
A42Y-P/KA42Y-P材料
|
A42Y-R材料
|
DA42Y-P材料
|
1
|
閥座
|
2Cr13/1Cr18Ni9Ti
|
ZG1Cr18Ni9Ti
|
ZG1Cr18Ni12Mo2Ti
|
ZG1Cr18Ni9Ti
|
2
|
閥體
|
WCB
|
ZG1Cr18Ni9Ti
|
ZG1Cr18Ni12Mo2Ti
|
LCB/ZG1Cr18Ni9Ti
|
3
|
調節圈
|
2Cr13/1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
1Cr18Ni9Ti
|
4
|
反沖盤
|
2Cr13/1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
1Cr18Ni9Ti
|
5
|
閥瓣
|
2Cr13/1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
1Cr18Ni9Ti
|
6
|
導向套
|
2Cr13/1Cr18Ni9Ti
|
1Cr18Ni9Ti
|
1Cr18Ni12Mo2Ti
|
1Cr18Ni9Ti
|
7
|
閥蓋
|
ZG230-450
|
ZG230-450
|
ZG230-450
|
ZG1Cr18Ni9Ti
|
8
|
彈簧
|
50CrVA
|
50CrVA包覆氟塑料
|
50CrVA包覆氟塑料
|
50CrVA
|
9
|
閥桿
|
2Cr13
|
1Cr18Ni9Ti/1Cr18Ni12Mo2Ti
|
1Cr18Ni9Ti/1Cr18Ni12Mo2Ti
|
1Cr18Ni9Ti
|
10
|
調整螺桿
|
45
|
2Cr13
|
2Cr13
|
2Cr13
|
11
|
閥帽
|
ZG200-400
|
ZG200-400
|
ZG200-400
|
ZG230-450
|
密封面材料
|
堆焊Co基硬質合金
|
||||

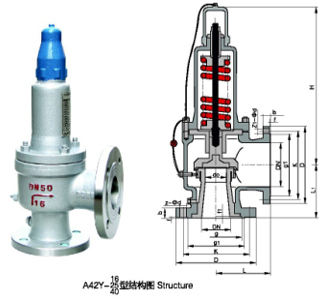

主要外形及連接尺寸
型號
|
公稱通徑
|
do
|
D
|
K
|
g
|
g1
|
b
|
f
|
f1
|
Z-ød
|
DN'
|
D1
|
K1
|
g3
|
g2
|
b1
|
f'
|
f1'
|
Z1-ød1
|
L
|
L1
|
≈H
|
A42Y-16C
A42Y-16P
A42Y-16R
KA42Y-16C
DA42Y-16C(P)
|
20
|
15
|
105
|
75
|
55
|
16
|
2
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
||||
25
|
16
|
115
|
85
|
65
|
16
|
2
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|||||
32
|
20
|
140
|
100
|
78
|
18
|
2
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|||||
40
|
25
|
150
|
110
|
85
|
18
|
3
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|||||
50
|
32
|
165
|
125
|
100
|
20
|
3
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|||||
65
|
40
|
185
|
145
|
120
|
20
|
3
|
4-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|||||
80
|
50
|
200
|
160
|
135
|
20
|
3
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|||||
100
|
65
|
220
|
180
|
155
|
22
|
3
|
8-18
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|||||
125
|
80
|
250
|
210
|
185
|
22
|
3
|
8-18
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|||||
150
|
100
|
285
|
240
|
210
|
24
|
3
|
8-23
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|||||
200
|
125
|
340
|
295
|
265
|
26
|
3
|
12-23
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|||||
250
|
150
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
|||||
300
|
220
|
460
|
410
|
375
|
30
|
4
|
12-26
|
400
|
580
|
525
|
485
|
36
|
4
|
16-30
|
370
|
350
|
1283
|
|||||
350
|
250
|
520
|
470
|
435
|
34
|
4
|
16-26
|
500
|
715
|
650
|
608
|
44
|
4
|
20-34
|
500
|
450
|
1520
|
|||||
400
|
280
|
580
|
525
|
485
|
36
|
4
|
16-30
|
500
|
715
|
650
|
608
|
44
|
4
|
20-34
|
500
|
450
|
1530
|
|||||
A42Y-25C
A42Y-25P
A42Y-25R
KA42Y-25C
DA42Y-25(P)
|
20
|
15
|
105
|
75
|
55
|
16
|
2
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
||||
25
|
16
|
115
|
85
|
65
|
16
|
2
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|||||
32
|
20
|
140
|
100
|
78
|
18
|
2
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|||||
40
|
25
|
150
|
110
|
85
|
18
|
3
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|||||
50
|
32
|
165
|
125
|
100
|
20
|
3
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|||||
65
|
40
|
185
|
145
|
120
|
22
|
3
|
8-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|||||
80
|
50
|
200
|
160
|
135
|
22
|
3
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|||||
100
|
65
|
230
|
190
|
160
|
24
|
3
|
8-23
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|||||
125
|
80
|
270
|
220
|
188
|
28
|
3
|
8-26
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|||||
150
|
100
|
300
|
250
|
218
|
30
|
3
|
8-26
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|||||
200
|
125
|
360
|
310
|
278
|
34
|
3
|
12-26
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|||||
250
|
150
|
425
|
370
|
332
|
36
|
3
|
12-30
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
|||||
300
|
220
|
485
|
430
|
390
|
40
|
4
|
16-30
|
400
|
580
|
525
|
485
|
36
|
4
|
16-30
|
370
|
350
|
1283
|
型號
|
公稱通徑
|
do
|
D
|
K
|
g
|
g1
|
b
|
f
|
f1
|
Z-ød
|
DN'
|
D1
|
K1
|
g3
|
g2
|
b1
|
f'
|
f1'
|
Z1-ød1
|
L
|
L1
|
≈H
|
A42Y-40C
A42Y-40P
A42Y-40R
KA42Y-40C
DA42Y-40(P)
|
20
|
15
|
105
|
75
|
51
|
55
|
16
|
2
|
4
|
4-14
|
25
|
115
|
85
|
65
|
16
|
2
|
4-14
|
110
|
95
|
378
|
||
25
|
16
|
115
|
85
|
58
|
65
|
16
|
2
|
4
|
4-14
|
32
|
140
|
100
|
78
|
18
|
2
|
4-18
|
110
|
95
|
378
|
|||
32
|
20
|
140
|
100
|
66
|
78
|
18
|
2
|
4
|
4-18
|
40
|
150
|
110
|
85
|
18
|
3
|
4-18
|
115
|
100
|
378
|
|||
40
|
25
|
150
|
110
|
76
|
85
|
18
|
3
|
4
|
4-18
|
50
|
165
|
125
|
100
|
20
|
3
|
4-18
|
120
|
110
|
406
|
|||
50
|
32
|
165
|
125
|
88
|
100
|
20
|
3
|
4
|
4-18
|
65
|
185
|
145
|
120
|
20
|
3
|
4-18
|
135
|
120
|
450
|
|||
65
|
40
|
185
|
145
|
110
|
120
|
22
|
3
|
4
|
8-18
|
80
|
200
|
160
|
135
|
20
|
3
|
8-18
|
160
|
140
|
520
|
|||
80
|
50
|
200
|
160
|
121
|
135
|
22
|
3
|
4
|
8-18
|
100
|
220
|
180
|
155
|
22
|
3
|
8-18
|
170
|
135
|
525
|
|||
100
|
65
|
235
|
190
|
150
|
160
|
24
|
3
|
4.5
|
8-23
|
125
|
250
|
210
|
185
|
22
|
3
|
8-18
|
195
|
175
|
690
|
|||
125
|
80
|
270
|
220
|
176
|
188
|
28
|
3
|
4.5
|
8-26
|
150
|
285
|
240
|
210
|
24
|
3
|
8-23
|
210
|
190
|
780
|
|||
150
|
100
|
300
|
250
|
204
|
218
|
30
|
3
|
4.5
|
8-26
|
175
|
310
|
270
|
240
|
26
|
3
|
8-23
|
255
|
230
|
838
|
|||
200
|
125
|
375
|
320
|
260
|
282
|
38
|
3
|
4.5
|
12-30
|
250
|
405
|
355
|
320
|
30
|
3
|
12-26
|
300
|
260
|
992
|
|||
250
|
150
|
450
|
385
|
313
|
345
|
42
|
3
|
4.5
|
12-34
|
300
|
460
|
410
|
375
|
30
|
4
|
12-26
|
350
|
320
|
1266
|
|||
A42Y-64
A42Y-64P
A42Y-64R
DA42Y-64(P)
|
20
|
10
|
125
|
90
|
51
|
68
|
22
|
2
|
4
|
4-18
|
25
|
115
|
85
|
58
|
65
|
16
|
2
|
4
|
4-14
|
96
|
85
|
264
|
25
|
16
|
140
|
100
|
58
|
78
|
22
|
2
|
4
|
4-18
|
32
|
140
|
100
|
66
|
78
|
18
|
2
|
4
|
4-18
|
110
|
100
|
277
|
|
32
|
20
|
155
|
110
|
66
|
82
|
24
|
2
|
4
|
4-23
|
40
|
150
|
110
|
76
|
85
|
18
|
3
|
4
|
4-18
|
130
|
110
|
289
|
|
40
|
25
|
170
|
125
|
76
|
95
|
24
|
3
|
4
|
4-23
|
50
|
165
|
125
|
88
|
100
|
20
|
3
|
4
|
4-18
|
130
|
120
|
319
|
|
50
|
32
|
180
|
135
|
88
|
105
|
26
|
3
|
4
|
4-23
|
65
|
185
|
145
|
110
|
120
|
222
|
3
|
4
|
8-18
|
135
|
130
|
389
|
|
65
|
40
|
205
|
160
|
110
|
130
|
28
|
3
|
4
|
8-23
|
80
|
200
|
160
|
121
|
135
|
22
|
3
|
4
|
8-18
|
175
|
160
|
493
|
|
80
|
50
|
215
|
170
|
121
|
140
|
30
|
3
|
4
|
8-23
|
100
|
235
|
190
|
150
|
160
|
24
|
3
|
4.5
|
8-23
|
175
|
160
|
483
|
|
100
|
65
|
250
|
200
|
150
|
168
|
32
|
3
|
4.5
|
8-26
|
125
|
270
|
220
|
176
|
188
|
28
|
3
|
4.5
|
8-25
|
195
|
195
|
613
|
|
150
|
100
|
345
|
280
|
204
|
240
|
38
|
3
|
4.5
|
8-34
|
200
|
375
|
320
|
260
|
282
|
38
|
3
|
4.5
|
12-30
|
280
|
265
|
894
|
|
A42Y-100
A42Y-100P
A42Y-100R
DA42Y-100(P)
|
20
|
10
|
125
|
90
|
51
|
68
|
22
|
2
|
4
|
4-18
|
25
|
115
|
85
|
58
|
65
|
16
|
2
|
4
|
4-14
|
96
|
85
|
264
|
25
|
16
|
140
|
100
|
58
|
78
|
24
|
2
|
4
|
4-18
|
32
|
140
|
100
|
66
|
78
|
18
|
2
|
4
|
4-18
|
110
|
100
|
277
|
|
32
|
20
|
155
|
110
|
66
|
82
|
24
|
2
|
4
|
4-23
|
40
|
150
|
110
|
76
|
85
|
18
|
3
|
4
|
4-18
|
130
|
110
|
289
|
|
40
|
25
|
170
|
125
|
76
|
95
|
26
|
3
|
4
|
4-23
|
50
|
165
|
125
|
8
|
100
|
20
|
3
|
4
|
4-18
|
130
|
120
|
319
|
